Buried Solar Road Stud SRBC-360

This buried solar road stud is engineered with pioneering optical and electrical design, it offers LED illuminance on all 4 sides and ensures visibility from all directions. It also has much higher LED brightness and longer operating time compared to traditional solar stud. It is very easy to install and maintain, with excellent pressure and water resistance, suitable for use on all kinds of intersections, roads and highways.

Model: SRBC-360

Solar Panel: Monocrystalline silicon 5.5V 55MA

Battery: Lithium polymer battery 3.7V 450mAh

Mode: Synchronous flashing; Flash; Sequence; Constant on; Customized mode

Work Hour: Over 72 hours after 8 hours of sunlight exposure

Size:138*54.5mm

Load Capacity:>30 tons

introduction

  1. 4 Sides LED Illumination: This solar road stud is engineered with patented optical and electrical design, it offers LED illuminance on all 4 sides and ensures visibility from all directions. It also has much higher LED brightness, longer operating time and better visibility compared to traditional solar stud.
  2. Extended Work Hour: With our patented structure design, our solar road stud is more efficient and can work for much longer. So it is suitable for use in areas with limited sunlight, such as high latitude regions.
  3. Dynamic Warning:The LED flash gives powerful dynamic warning effect for both cars and walkers, improving overall road safety. We can also makes the LED constant on so it can act as lighting.
  4. Intelligent Traffic Safety Solution: Designed for both human and machine vision recognition, it is an intelligent traffic safety solution catering to the needs of both individuals and cars. The solar road stud can be connected with overall traffic system backend to control illumination mode and colors, making it an essential component of the modern V2I (Vehicle-to-Infrastructure) traffic system.
  5. Easy Installation and Maintenance: With a user-friendly design, installation and maintenance are hassle-free, minimizing road congestion and disruptions. Even in adverse weather conditions like rain or snow, workers can easily unscrew the top off and replace internal component without damaging the road surface.
  6. Suitable for Roads of All Grades:Built to withstand varying road conditions, our solar road stud offers outstanding load capacity and waterproofing. It is great for installation on all types of intersection, roads and highways, ensuring durability and long product life.

specification

Model:SRBC-360
Body Material:Aluminum alloy
Solar Panel: Monocrystalline silicon 5.5V 55MA
Battery: Lithium polymer battery 3.7V 450mAh, cycle charge and discharge over 1800 times
Work Hour:Under standard light intensity, can work continuously for over 72 hours after 8 hours of sunlight exposure
LED Color:Yellow, white light
Mode:Synchronous flashing; Flash; Sequence; Constant on; Customized mode
Activation: 60-100Lux
Visibility: > 500 meters
Load Capacity: > 30 tons
Waterproof Rating: IP68
Operating Environment: -20°C to 70°C
Weight: 1100±10g
Size: 138*54.5mm
Service Life: 3 years (under normal usage)

application

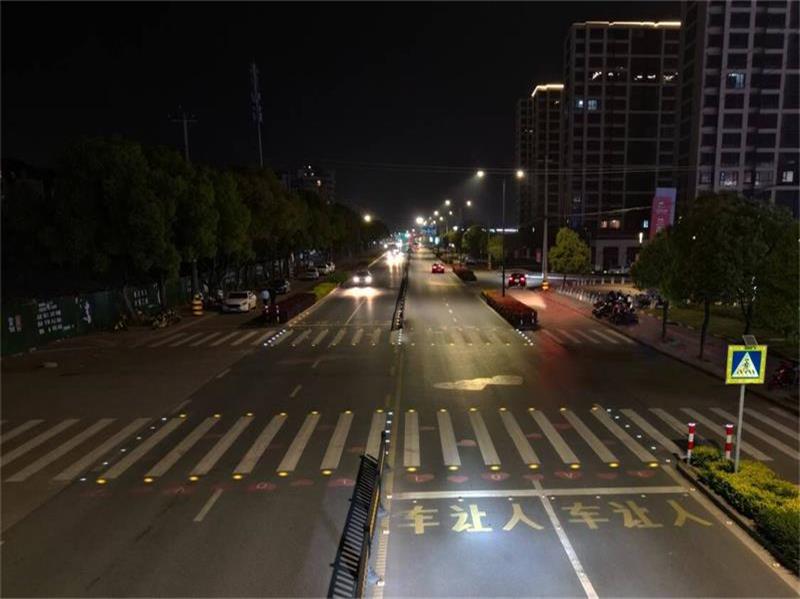

Recommended Installation Location: All kinds of intersection, roads and highways.

Installation Method: Firstly, determine the installation location and drill a hole. The aperture should be 4mm larger than the diameter of the road stud, and the depth should be 5mm lower than the buried depth of the road stud. Clean the hole from accumulated dust, then insert and tamp the mixed adhesive into the hole. Apply epoxy resin adhesive to the bottom of the road stud, and firmly press both sides onto the installation location to ensure tight bonding with the road surface. After installing the road stud, remove any excess adhesive around the stud with a spatula and clean the road surface.

Precautions: Avoid adhesive sticking to the transparent shell, which may affect the luminous effect. Do not install road studs on wet, damp, or oily surfaces as they may easily detach. Remove the road cones 4 hours after installation.
