Buried Solar Road Stud SRBC-330P
This sustainable buried solar road stud is quipped with innovative optical and electrical design, and a unique photoluminescent function. It offers excellent pressure and water resistance, much longer working hour and higher luminosity than other road stud. It is great for using on all kinds of roads and highways.
Model: SRBC-330P
Solar Panel: Monocrystalline silicon 5.5V 55MA
Battery: Lithium polymer battery 3.7V 450mAh
Mode: Synchronous flashing, Photoluminescent
Work Hour: Over 72 hours after 8 hours of sunlight exposure

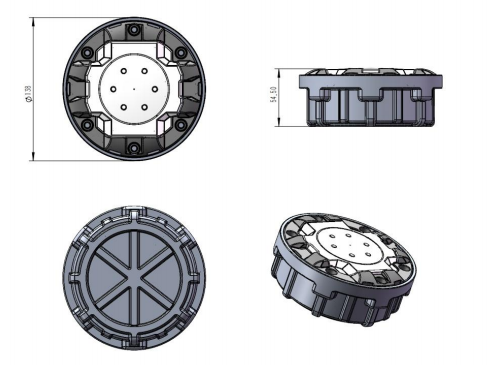

Size:138*54.5mm
Load Capacity:>30 tons
introduction
- Duo Luminance: This buried solar road stud is designed with innovative optical and electrical engineering and photoluminescent function, achieving “Zero-Carbon Luminance”.
- High Brightness:Equipped with dual-sided 4 high-brightness dome LEDs and 4 patch LEDs, it offers much higher LED brightness and longer operating time compared to other road markers, enhancing visibility for road users.
- Extended Work Hour: Its extended work hours allows our solar road stud overcome the technical limitations of traditional solar road studs, making it suitable for use in high latitude areas or regions with insufficient sunlight, thereby expanding its application scenarios.
- Dynamic Warning:Synchronized flashing LEDs and glow-in-the-dark functionality deliver a powerful warning effect for both drivers and pedestrians, enhancing road safety.
- Intelligent Traffic Safety Device: It is suitable for both human eyes and machine vision recognition, making it an intelligent traffic safety device that accommodates both humans and automobiles.
- Easy Installation and Maintenance: Installation and maintenance are simple, even in adverse weather conditions like rain or snow, workers can easily unscrew the top off and replace internal component without damaging the road surface.
- With exceptional pressure and water resistance, it is suitable for installation on all types of roads and highways, ensuring durability and long service life.
specification
Model: | SRBC-330P |
Body Material: | Aluminum alloy |
Solar Panel: | Monocrystalline silicon 5.5V 55MA |
Battery: | Lithium polymer battery 3.7V 450mAh, cycle charge and discharge over 1800 times |
Work Hour: | Under standard light intensity, can work continuously for over 72 hours after 8 hours of sunlight exposure |
LED Color: | Yellow, white |
Mode: | Synchronous flashing, Photoluminscent |
Afterglow Intensity: | 10min>1550mcd/m2,60min>220mcd/m2,3h>52mcd/m2 |
Activation: | 60-100Lux |
Visibility: | > 500 meters |
Load Capacity: | > 30 tons |
Waterproof Rating: | IP68 |
Operating Environment: | -20°C to 70°C |
Weight: | 1100±10g |
Size: | 138*54.5mm |
Service Life: | 3 years (under normal usage) |
application

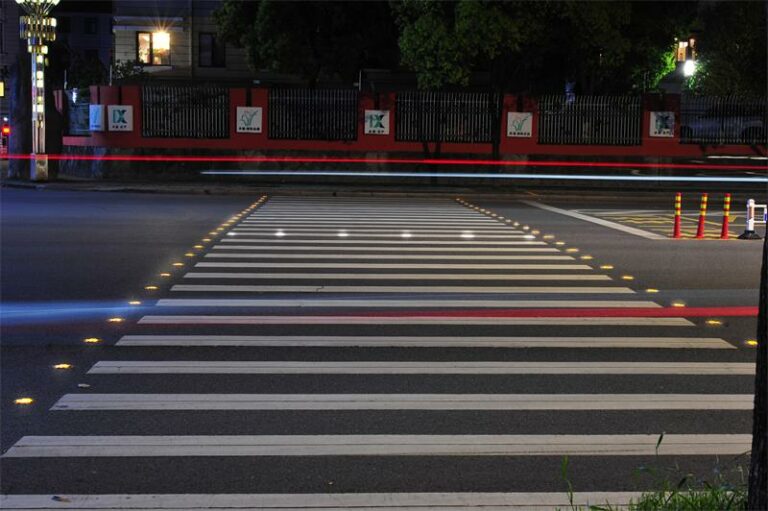

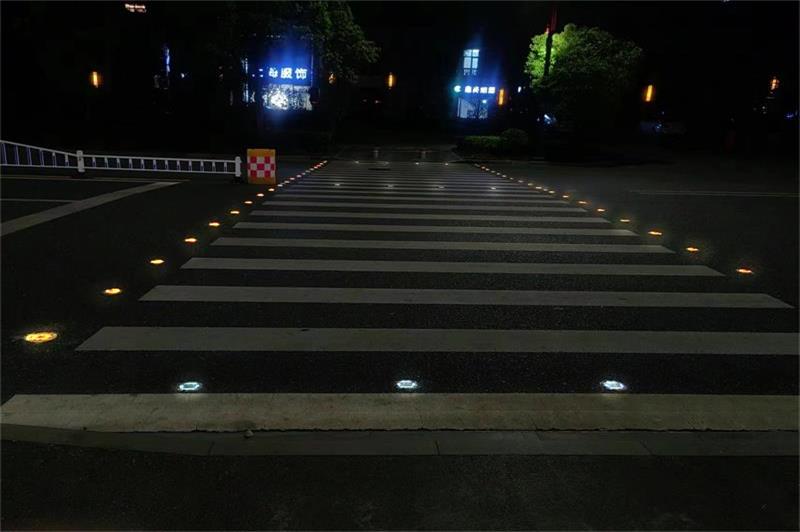

Recommended Installation Location: All kinds of roads and highways.
Installation Method: Firstly, determine the installation location and drill a hole. The aperture should be 4mm larger than the diameter of the road stud, and the depth should be 5mm lower than the buried depth of the road stud. Clean the hole from accumulated dust, then insert and tamp the mixed adhesive into the hole. Apply epoxy resin adhesive to the bottom of the road stud, and firmly press both sides onto the installation location to ensure tight bonding with the road surface. After installing the road stud, remove any excess adhesive around the stud with a spatula and clean the road surface.
Precautions: Avoid adhesive sticking to the transparent shell, which may affect the luminous effect. Do not install road studs on wet, damp, or oily surfaces as they may easily detach. Remove the road cones 4 hours after installation.
