Buried Solar Road Stud SRBB-350
A durable buried solar road stud with long viewing distance and much higher luminosity than competing solar road markers. It achieves “Zero-Carbon Luminance” by solar power. Can be installed on all kinds of road center or edges, it offers easy maintenance, excellent waterproofing, and outstanding pressure resistance.
Model: SRBB-350
Solar Panel: Monocrystalline silicon 5.5V 55MA
Battery: Lithium polymer battery 3.7V 450mAh
Mode: Constant on, Flashing, Synchronous flashing, customized mode
Work Hour: Over 72 hours after 8 hours of sunlight exposure
Size:148*57mm
Load Capacity:＞30 tons
introduction
- Ultra Brightness: With our patented optical and electrical design,our solar road stud offers much better visibility and higher luminosity than competing products.
- Extended Work Hour: With more reasonable structure design, our solar road stud can work for much longer using less power. So it is suitable for use in areas with limited sunlight, such as high latitude regions, and expanding its potential applications.
- Dynamic Warning:The flash gives powerful dynamic warning effect for both cars and walkers, enhancing road safety. We can also makes the LED constant on so it can act as lighting.
- Intelligent Traffic Safety Solution: Designed for both human and machine vision recognition, it is an intelligent traffic safety solution catering to the needs of both individuals and cars. The solar road stud can be connected with overall traffic system backend to control illumination mode and colors, making it an essential component of the modern V2I (Vehicle-to-Infrastructure) traffic system.
- Easy Installation and Maintenance: Installation and maintenance is easy with minimal road congestion. Even in adverse weather conditions like rain or snow, workers can easily unscrew the top off and replace internal component without damaging the road surface.
- Suitable for Roads of All Grades:With outstanding load capacity and waterproof, this solar road stud is great for installation on all types of roads and highways, ensuring durability and long service life.
specification
| Model: | SRBB-350 |
| Body Material: | Aluminum alloy |
| Solar Panel: | Monocrystalline silicon 5.5V 55MA |
| Battery: | Lithium polymer battery 3.7V 450mAh, cycle charge and discharge over 1800 times |
| Work Hour: | Under standard light intensity, can work continuously for over 72 hours after 8 hours of sunlight exposure |
| LED Color: | Yellow, white, other colors can be customized |
| Mode: | Constant on, Flashing, Synchronous flashing ;Reflective; Photoluminescent |
| Activation: | 60-100Lux |
| Afterglow Intensity: | 10min＞1550mcd/m2，60min＞220mcd/m2,3h＞52mcd/m2 |
| Visibility: | > 500 meters |
| Load Capacity: | > 30 tons |
| Waterproof Rating: | IP68 |
| Operating Environment: | -20°C to 70°C |
| Weight: | 1250±10g |
| Size: | 148*57mm |
| Service Life: | 3 years (under normal usage) |
application

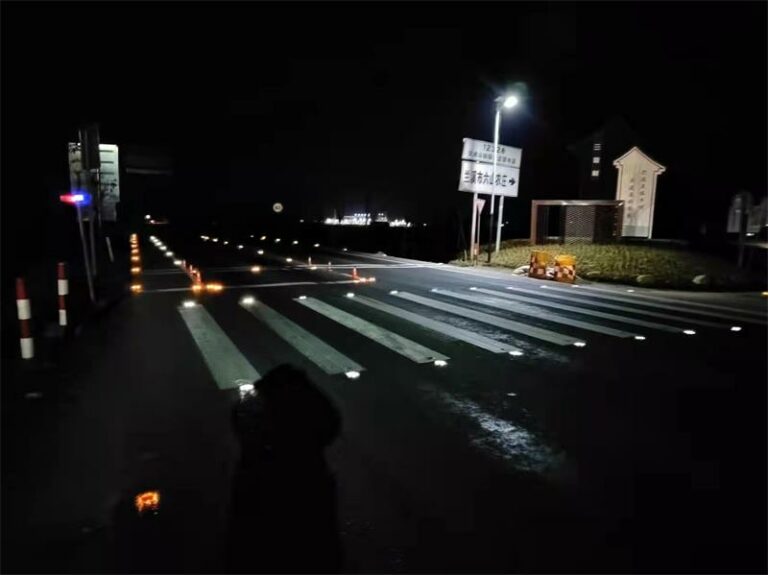

Recommended Installation Location: All kinds of roads and highways.
Installation Method: Firstly, determine the installation location and drill a hole. The aperture should be 4mm larger than the diameter of the road stud, and the depth should be 5mm lower than the buried depth of the road stud. Clean the hole from accumulated dust, then insert and tamp the mixed adhesive into the hole. Apply epoxy resin adhesive to the bottom of the road stud, and firmly press both sides onto the installation location to ensure tight bonding with the road surface. After installing the road stud, remove any excess adhesive around the stud with a spatula and clean the road surface.
Precautions: Avoid adhesive sticking to the transparent shell, which may affect the luminous effect. Do not install road studs on wet, damp, or oily surfaces as they may easily detach. Remove the road cones 4 hours after installation.
