태양광 보행자 횡단보도 표지판 SRS-680P
This patented solar signage operates in a flashing mode with 3-in-1 luminance: LED, photoluminescence and reflection. The sign’s aluminum alloy frame is sealed, with the battery and control system built-in. The solar panel is fixed at the top of the sign, with an adjustable angle. It is mainly installed at pedestrian crossings to provide guidance and warnings to both drivers and pedestrians, effectively reducing traffic accidents.
Model: SRS-680P
태양 전지 패널: 단결정 실리콘 18V 10W
Battery: Gel batteries 12V5AH, 2 units
모드: 플래시; 축광; 반사
근무시간 : 8시간 햇빛노출 후 72시간 이상
Size:800*800*50mm
가시성: >300m
소개
1.3-in-1 Luminance: Solar traffic signage integrates 3-in-1 luminance: Retro-reflection, long afterglow photoluminescence, and LED illumination.
2.High Visibility: During the night or low light conditions, the sign reflects headlights, and the LED activates in a flashing mode for dynamic warning, and the photoluminescent part glow in the dark, providing visibility over 300 meters.
3.Durability: It features a durable sealed aluminum alloy frame with built-in battery and control system. These signs are designed to withstand various weather conditions, including rain, snow, and extreme temperatures.
4.Energy Efficiency: The solar panel is positioned at the top of the sign with an adjustable angle. It allows for optimal positioning to capture maximum sunlight throughout the day. A truly environmentally-friendly traffic safety signage that achieves our “Zero-carbon Luminance”.
5.Safety Guidance: This solar signage is primarily installed on both sides of roads or at intersections, serving as an indication and warning for both drivers and pedestrians, effectively preventing potential traffic hazards.
사양
| 모델: | SRS-680P |
| 본체 재질: | 알류미늄 |
| 태양 전지 패널: | 단결정 실리콘 18V 10W |
| 배터리: | 젤 배터리 12V 10AH |
| 근무시간: | 표준 조도에서 8시간 햇빛 노출 후 72시간 이상 연속 작동 가능 |
| LED 색상: | 노란색, 보라색 |
| 순간 전력: | 4W |
| 반사 부분: | 마이크로 프리즘 국가 표준 클래스 4 반사 필름 |
| 방법: | 플래시; 반사; 축광 |
| 활성화: | 60-100럭스 |
| 시계: | > 300미터 |
| 방수 등급: | IP66 |
| 운영 환경: | -20°C ~ 70°C |

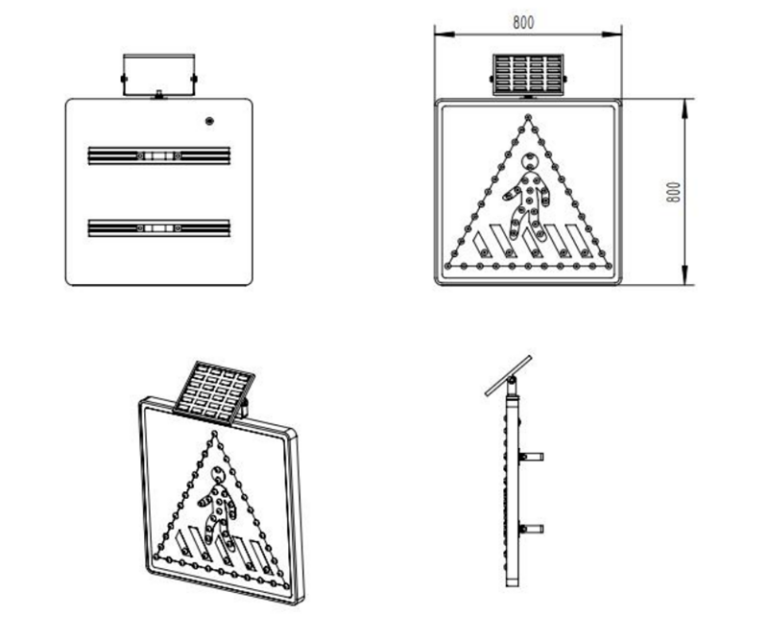

| 크기: | 800*800*50mm (excluding solar panel and support pillar) |
| 서비스 수명: | 3년(정상 사용 시) |
애플리케이션
Installation Location: Pedestrian crosswalk
설치방법 : 태양광 패널이 남쪽을 향하게 하여 기둥 상단에 고정합니다.
제품 관리 : 정기적으로 제품의 오류 및 조명 성능을 점검하고, 파손된 경우 즉시 교체하십시오.
