Photoluminescent at Reflective T/C Fabric
Our patented photoluminescent and reflective T/C fabric can not only reflect light, but also glow in the dark without without external light sources. It can provide much better visibility and effectively reduce accidents. It features high luminosity and reflectivity, long glow time, excellent washability, and great UV resistance.
Model: MHC-9323A
Material: T/C Fabric
Attachment: Sew-on
Afterglow Intensity: 10mins＞150mcd/㎡, 60mins＞20mcd/㎡(Class C grade)
Reflectivity:≧330cd/ ( lx·㎡)
Washability: 30 washes at 60℃ (ISO 6330)
Size:Width: 2~5cm, customized size
panimula
MHC-9323A is our T/C photoluminescent and reflective fabric with a Class C grade luminosity and 330cd/ ( lx·㎡) reflectivity, comes in form of tape. With our patented technology, this reflective tape exhibits exceptional dual functionality, able to reflect light and glow in the dark without light.
It stands out in every performance index including washability, glow time, UV resistance, xcellent weather, heat and cold resistance. It is a great choice for both safety protection garments and leisure wear, combining style and safety effortlessly.
It can be easily carved into different patterns according to customer needs, this fabric allows for creative customization. With width options from 2cm to 5cm, we can also make customized width based on customer requests.
pagtutukoy
| Product name: | Photoluminescent Reflective T/C Fabric |
| Modelo: | MHC-9323A |
| Appearance: | Light yellow+silver |
| Glow Color: | Yellow-green |
| Main Material: | Strontium aluminate based photoluminescent pigment, glass beads, TC fabric, PES hotmelt adhesive, resin |
| Attachment Type: | Sew on |
| Specification: Width: | 2~5cm (other sizes can be customized) |
| Glow properties: | 10mins afterglow Intensity＞150mcd/㎡, 60mins＞20mcd/㎡(Class C grade) |
| Reflective properties: | ≧330cd/ ( lx·㎡) |
| Washing Performance: | 30 washes at 60℃ (ISO 6330) |
Below is the standard models we have for photoluminescent and reflective HTV and fabric tape. We also offer customization services to bring your unique designs to life, whether it’s your logo, clothes stamp, or any creative idea you have in mind.
| Pattern name | Material series | Model No. | Picture |

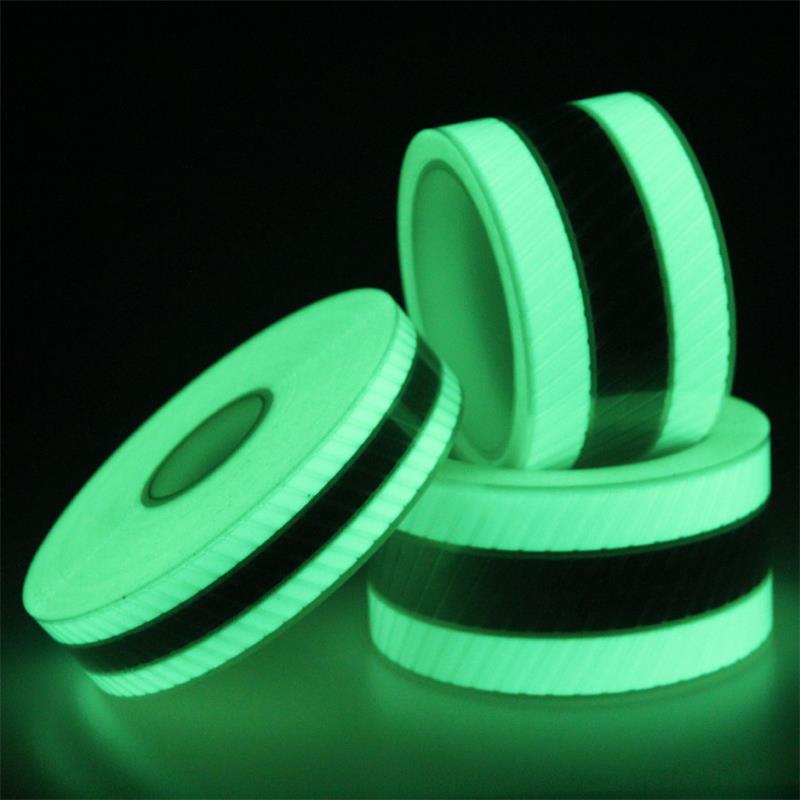

| Double stripes tape | Polyester fabric series | MHC-9321A-ZW01 |  |
| TC fabric series | MHC-9323A-ZW01 | ||
| PES heat transfer film series | MHC-9371A-ZW01 | ||
| Single stripe tape | Polyester fabric series | MHC-9321A-ZW02 |  |
| TC fabric series | MHC-9323A-ZW02 | ||
| PES heat transfer film series | MHC-9371A-ZW02 | ||
| Twill tape | Polyester fabric series | MHC-9321A-XW01 |  |
| TC fabric series | MHC-9323A-XW01 | ||
| PES heat transfer film series | MHC-9371A-XW01 | ||
| Double bend twill tape | Polyester fabric series | MHC-9321A-XW02 |  |
| TC fabric series | MHC-9323A-XW02 | ||
| PES heat transfer film series | MHC-9371A-XW02 | ||

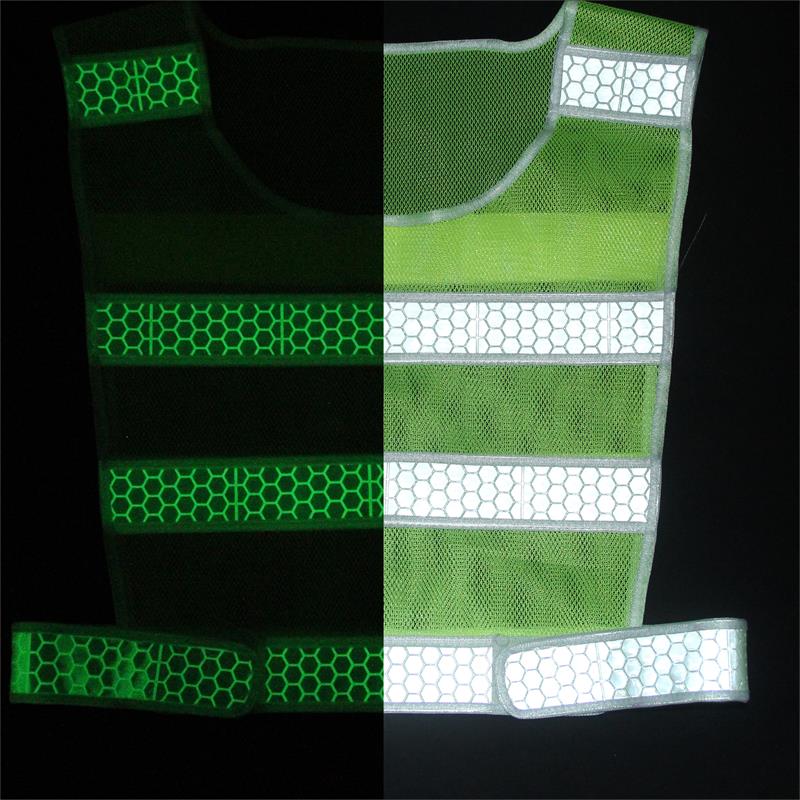

| Honeycomb tape | Polyester fabric series | MHC-9321A-H601 |  |
| TC fabric series | MHC-9323A-H601 | ||
| PES heat transfer film series | MHC-9371A-H601 | ||
| Square tape | Polyester fabric series | MHC-9321A-H401 |  |
| TC fabric series | MHC-9323A-H401 | ||
| PES heat transfer film series | MHC-9371A-H401 |
Paglalapat

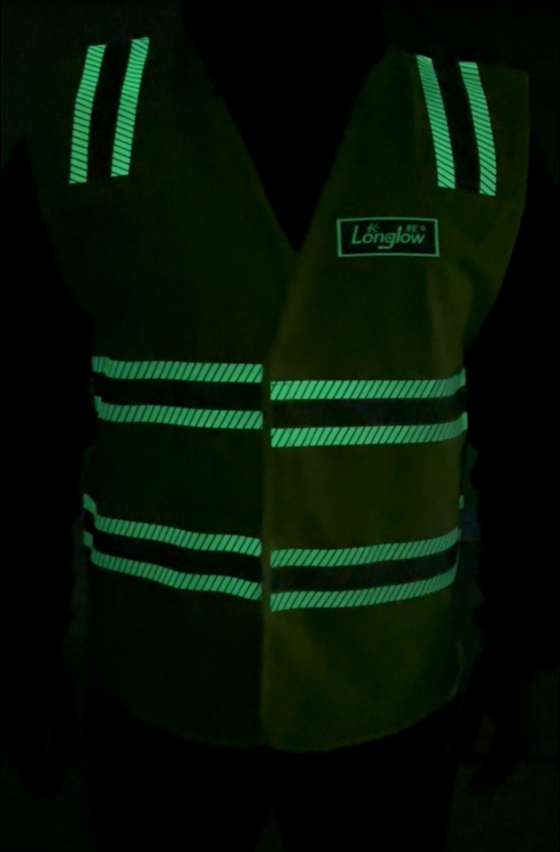

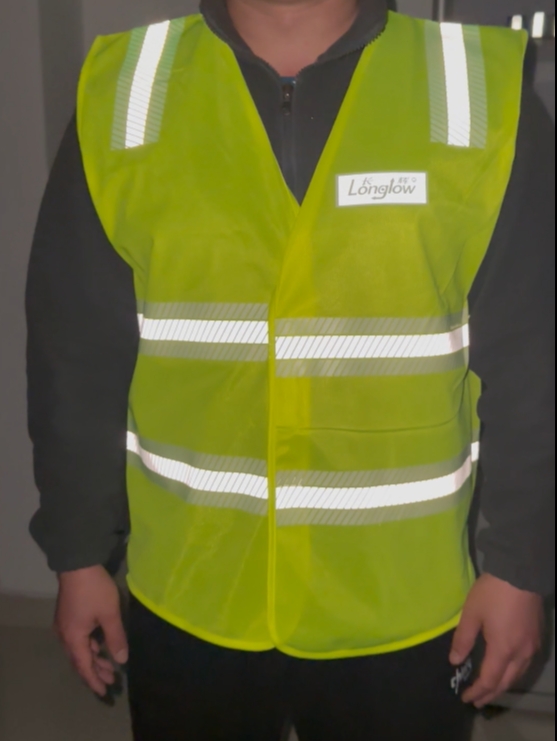

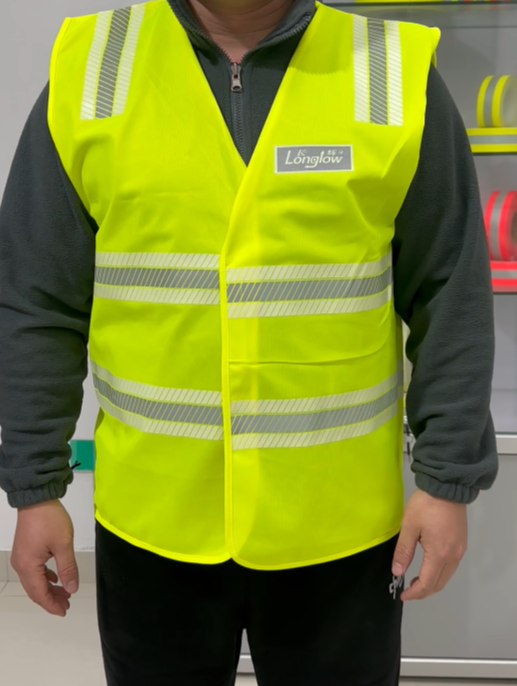

Application: It is mainly used in the fields of personal protection, public protection, emergency fire protection, textile clothing, transportation, military facilities, architectural decoration, industrial and daily necessities. The product is widely used for reflective clothing, all kinds of professional clothing, leisure wear. For example, uniforms of police, sanitation workers, firefighters, construction workers, couriers, petroleum and petrochemical fields.
The T/C glow in the dark and reflective tape can be directly sewn onto all kinds of fabrics (with a weight of less than 150g/㎡). Use a double-thread lockstitch sewing method, with no more than 5 stitches per centimeter and a minimum distance of 2 millimeters from the edge of the photoluminescent and reflective fabric.
Use a household washing machine with a maximum temperature of 60℃, standard household detergent (do not use bleach). Drying temperature should not exceed 50℃, ironing at a medium temperature without steam.
